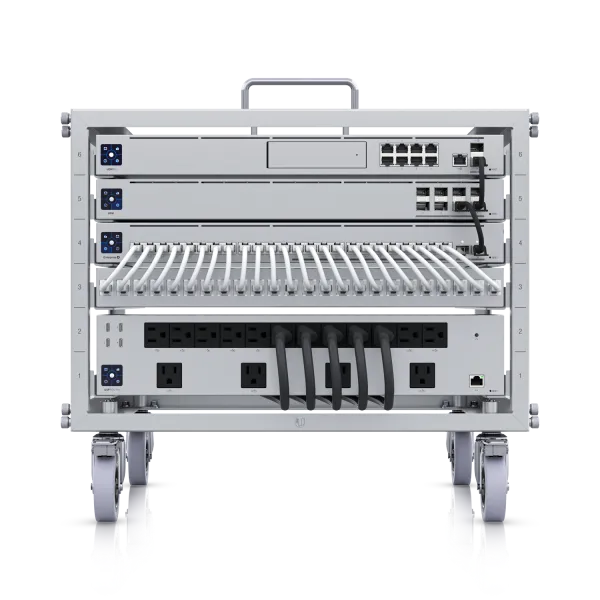

The Ubiquiti Mini Rack is a 6U open-frame rolling rack designed for UniFi equipment. The build quality is excellent—smooth-rolling wheels, sturdy frame, toolless mounting for UniFi gear—and it’s genuinely useful for staging and organizing equipment before deployment. But 6U is an awkward size that gets cramped fast once you account for a switch, gateway, and power distribution, and the open mobile design creates an aesthetic problem: cables running to a rack on wheels look perpetually temporary. My gear ultimately ended up in a wall-mounted rack that looked intentional rather than improvised. The Mini Rack remains a good workbench on wheels for assembly and configuration, just not where I wanted my network infrastructure to live long-term.

Build Quality

The construction is excellent. High-quality wheels that roll smoothly, lightweight yet sturdy frame, and the whole unit is easy to maneuver. The built-in support rails are a thoughtful touch—your equipment won’t sag or hang at an angle even when the rack is partially empty. Assembly was straightforward with no fighting required.

The toolless mounting system is genuinely nice for UniFi gear. Hand-tighten the screws and you’re done. No hunting for cage nuts or rack screws. One caveat: the thumbscrews on this “toolless” rack often require more torque than thumbs can comfortably generate. Keep a screwdriver handy for tightening and loosening—you’ll thank yourself later.

The 6U Problem

Six rack units is an awkward size. It’s too large for a minimal installation and too small for a serious one.

Consider: The space gets cramped fast. You’re starting with a row of keystone jacks at 1U. A switch and a Dream Machine (or similar gateway device) take up another 2U. The UniFi PDU or UPS takes up 2U more. You’ve got room for a 1U UNAS or NVR, but nothing else, not even 1U of compute.

The stacking kit exists to address this limitation, but it more than doubles the price, and you’re paying for two sets of wheels when you only need one. Plus, that’s an extra 6U; you probably only need 1U or 2U for a small compute unit.

The Cabling Aesthetic Issue

This is an open, mobile rack on wheels. It looks great sitting empty or with a single device installed. The moment you start running cables into it, things get visually awkward unless you planned your cable distribution around the mini-rack’s height.

A small mobile rack with a bundle of Ethernet cables running to it looks strange. If you’re wiring up a full row of ports on a switch, it looks stranger. Even a single cable from another switch has an oddly temporary appearance.

The mobility is the problem: cables want permanent endpoints, but this rack wants to roll around. If you use it, plan for this. Use keystone jacks so you’re not permanently tethered. Accept that the aesthetic will be “portable staging” rather than “finished installation.”

Compatibility Caveats

UniFi gear mostly fits well, with some exceptions:

  • Smaller UniFi devices may need custom or 3D-printed rack adapters
  • One product didn’t work with the toolless mounting screws; this felt like a manufacturing tolerance error rather than a design issue
  • If you’ve added UniFi rack ears to your gear for use in a standard rack, you’ll need to remove them before installing in the Mini Rack. You can’t even slide the equipment in temporarily to test fit—the ears block insertion about 2-3 inches out from the normal front of the rack

Non-UniFi equipment is more problematic. The toolless hand screws have nowhere to engage on standard rack-mount gear, and the standard rack screw holes are absent. Equipment will physically sit in the rails, but it can’t be secured as intended. If you don’t jostle it, it stays put. That’s not reassuring.

Airflow

The open-frame design means airflow isn’t a concern. No enclosure to trap heat. The only potential issue would be equipment with side-mounted intakes blocked by the support rails, but that’s an unusual configuration.

Where I Ended Up

I originally intended to use the Mini Rack for my UniFi equipment. In practice, the wheeled rack with cables running to it looked too temporary, too improvised. The gear now lives in a wall-mounted rack that already had my patch panel installed. That looks permanent. That looks intentional.

The Mini Rack remains useful for staging—assembling and configuring equipment before moving it to its permanent home, or temporarily relocating gear for maintenance. It’s a good workbench on wheels. It’s just not where I wanted my network infrastructure to live long-term. That might change given the chance to plan the wiring around the minirack, but I could as easily end up using other rack products to hold both ubiquiti gear and other rack-mountable devices.

Verdict

The Ubiquiti Mini Rack is well-made hardware that solves a specific problem: portable staging and organization of UniFi equipment. The build quality is high, the toolless mounting is convenient, and the mobility is real.

But 6U is cramped for power users, the PDU eats too much of that space, non-UniFi gear won’t secure properly, and cables running to a rolling rack look awkward in a home environment. Know what you’re buying: a mobile staging platform, not a permanent installation destination. With that expectation set correctly, it’s a useful piece of kit.
